0.2s Access Control Turnstile Gate Half Height Turnstile Electromechanical Flap

Turboo Euro Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.2s Access Control Turnstile Gate Half Height Turnstile Electromechanical Flap

  • 1
  • 2

Brand Name : Turboo Euro

Model Number : L329

Certification : CE, ISO9001

Place of Origin : Guangdong China(Mainland)

MOQ : 1 pcs

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 1000+PCS PER MONTH

Delivery Time : 7-10 working days

Packaging Details : Wooden Case Package

Product Size : 480*280*960mm

Unlock Time : 0.2s

Pass Rate : 35p/m

Pass Width : 600-1100mm

Material : SUS304,HL400

Arm Material : SUS303

Reliability Of Th : 3 Million, No Fault

Thickness : Full 1.0MM

Contact Now

Access Control Entrance Barrier Gate Half Height Turnstile Electromechanical Flap Turboo
Product Description
LV329 is made of stainless steel in a modern style, designed for outdoor use wihtout any shelter.
Can providing a elegant and secure solution for indoor and outdoor applications, like stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.

Product parameters

Technical Data L328
Dimension 480x280x960mm
Unlock time 0.2s
Passage width ≤600mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 30w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 30kg
Input 12v dry contact

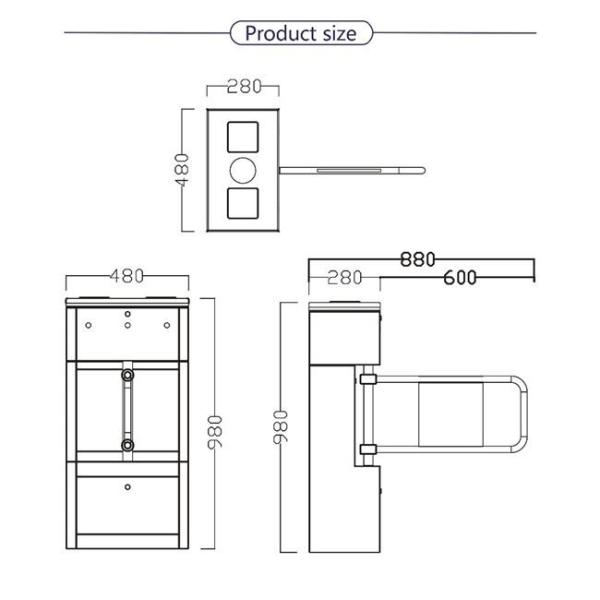

Dimension Diagram

0.2s Access Control Turnstile Gate Half Height Turnstile Electromechanical Flap

Features And Benefits:

• Use of RFID IC cards, ID cards, Barcode or magnet-ic cards as automatic identification system and achieve access attendance, fees or function.

• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.

• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.

• Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will auto-matically rotate forward by motor power until the arm arrives in home position.

• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.

• Single or bi-directional function in mechanical and electrical versions.

• Automatic reset of barrier arms after each passage.

• Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.

• Adjustable time out delay.
Certificate
0.2s Access Control Turnstile Gate Half Height Turnstile Electromechanical Flap
Service And Shipping
0.2s Access Control Turnstile Gate Half Height Turnstile Electromechanical Flap

Our advantage
1. Compact appearance, adapt to varied situation(no install place for card reader ), Reliable and durable, low noise and stable operation;

2. Standard electrical interface, various card reader acceptal to our swing gate & can be controlled by computer, Single/Double Directional Optional which can be controlled by both ways or single way;

3. When power off, the gate will be dropped down (optional set free passage when power off) to the request of fire protection, and automatically closes when power on;

4. Surface of mechanical electroplated with yellow dichromic acid, antirust and durable;

5. The swing gate installed Infrared sensor interfaces, could be expanded to Infrared testing function.

6. The horizontal bi-directional movement of the arm allows patrons to pass smoothly through the ADA swing gates, prevent pedestrians from being nipped and from being hurt;

7. Breakdown Self-checking and alarm indication, easy for maintenance and using;

8. The motor will stop working in case of the swing encounter of obstruct;

9. The swing gate arm will lock in case of not receving the open signal;

10. Arms synchronization. (adjustable): Arms are automatically locked until opening signal is received;

11. Anti illegal entering alarm: Light and sound alarm is generated when the illegal invasion and the tail followed;

12. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable
